NBR & FKM Ruber Coating Steel Material for Seals Gaskets
Product Dimension:
•Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm.
•Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.
Customization:Available
Standard:ASTM, JIS, GB, AISI, DIN, BS, SGS
Certification:IATF16949
Share to:
| Surface Treatment | Coating |
| Application | Gasket,shim,clip |
| Stainless Steel Thickness | 0.20-0.40mm |
| Coating Material | NBR, FKM, NBR FOAM,PTFE |
| Transport Package | Pallet and Waterproof Paper |
| Trademark | CNM |
| HS Code | 7219900000 |
| Technique | Cold Rolled |
| Coil or Sheet | Coil or Sheet available |
| MOQ | 1Ton |
| Rubber Coating Thickness | 0.02-0.12mm |
| Sample | Provide Free Sample in A4 Pieces |
| Specification | 500-1000mm width |
| Origin | China |
Product Dimension:
Available metal substrates thickness are between 0.2mm-0.8mm. Max width is 800mm. Rubber coating thickness is between 0.02-0.1 2mm single and double -side rubber coated metal roll material can meet the requirement of different customers.
Characteristics:
1.Excellent high and low temperature resistance-working temperature is between -20ºC and 120ºC;
2.Good sealability and suitable for gas and fluid sealability;
3.Excellent mechanical performance. Tensile strength can reach 100MPa.Excellent compression, recovery and stress relaxation performance;
4.Good fluid resistance and suitable for various complicated environment, especially suitable for mechanical oil, antifreeze and coolant;
5.Good anti-ageing property
6.Fine processing properties and can be processed automatically in continuous way which keep the same lot of gaskets in good consistence with high efficiency.
Application
Rubber coated metal materials gives the consideration of both metal rigidity and rubber elasticity for its special construction. So this material is suitable for automobile and motorcycle cylinder head gaskets ,accessory gaskets, refrigeration and compressor gasket with its excellent sealability,compression and recovery property, good creep relaxation and fluid resistance and durability, good coolant and low temperature resistance performance.

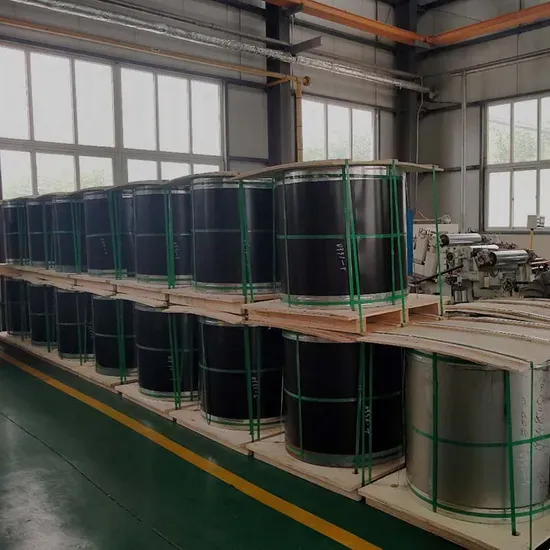

Rubber Coated Metal Production Line
Automatic production line to assure the premium quality and short lead time
Experimental Facility
Advanced measurement control method. We introduce the advanced surface pressure analysis instrument to analyse the pressure figure of the sealing position and improve the product analysis accuracy.
What are the applications of the materials?
Automobile and motorcycle cylinder head gaskets, accessory gaskets, refrigeration and compressor gasket; Shim on brake pad, clips.
Why choose us?
OE quality and work with well-known brands
Different thicknesses meet product application.
Various color help you create a unique brand identity.
Excellent sealability, compression and recovery property, good creep relaxation and fluid resistance and durability, good coolant and low temperature resistance performance
Product range?
Rubber and steel composite sheet, NBR coating materials, FKM coating materials, FOAMET Materials/NBR FORM coating materials, graphite/asbestos-free metal composite sheet.
Can I get a sample?
Sure. Samples can be provided in A4 size.
What's the delivery time?
20~30 days
Why the delivery status shall be in master coil?
To save cost for you and in order that you can get much better price, we suggest to deliver the goods in master coil instead of slitted kind as the export tax refund is different for master coil with width above 600mm and slitted kind. If you have no slitted capacity, we will supply the slitted kind for you.
