Product Specifications

Product Dimensions:

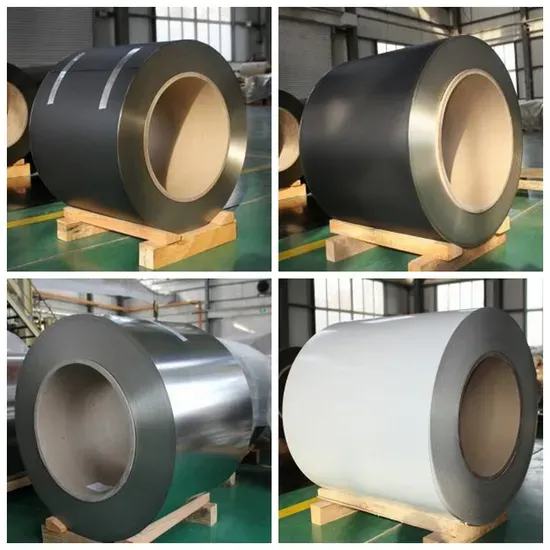

The available metal substrates range in thickness from 0.2 mm to 0.8 mm, with a maximum width of 800 mm. The rubber coating thickness is between 0.02 mm and 0.12 mm. The rubber-coated metal coil material, available in both single-sided and double-sided options, meets the needs of different customers.

The available metal substrates range from 0.2 mm to 0.8 mm in thickness. The maximum width is 800 mm. The rubber coating thickness ranges from 0.02 mm to 0.12 mm. Both single-side and double-side rubber-coated metal coil materials are available to meet the needs of different customers.

Characteristic:

1. Excellent high and low temperature resistance: operating temperature range from -40°C to 120°C.

2. Good sealing performance, ideal for gases and fluids.

3. Excellent mechanical performance. Tensile strength can reach 100 MPa. Outstanding compression, recovery and stress relaxation performance.

4. Good fluid resistance, suitable for various complex environments, especially for mechanical oils, antifreeze and coolants.

5. Good anti-aging properties.

6. Excellent processability, suitable for continuous automatic processing, maintaining consistent gasket quality within the same batch with high efficiency.

Application:

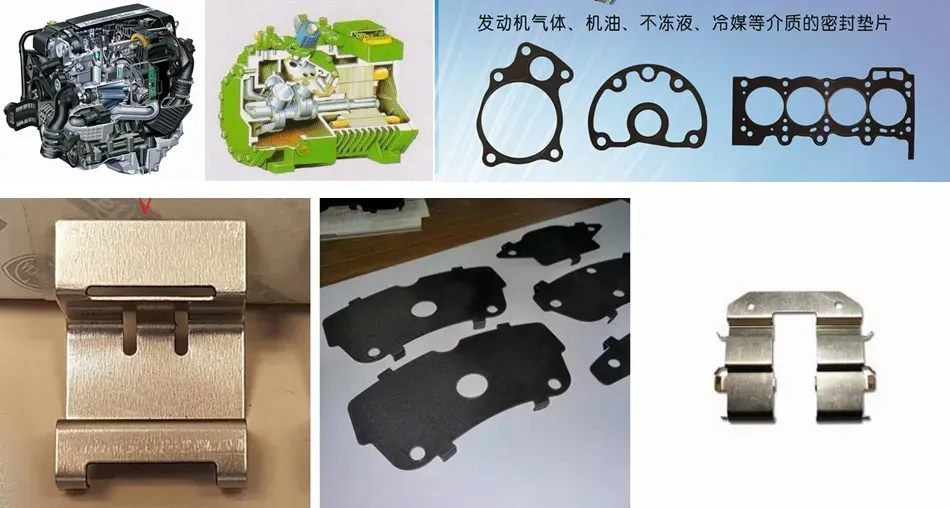

Rubber-coated metal materials combine the rigidity of metal with the elasticity of rubber through their special construction. Therefore, this material is suitable for automotive and motorcycle cylinder head gaskets, fitting gaskets, cooling system gaskets and compressor gaskets, thanks to its excellent sealing performance, compression and recovery properties, good creep relaxation, fluid resistance and durability, as well as good resistance to coolants and low temperatures. We supply approximately 90% of the OE sealing product market both in China and overseas.
